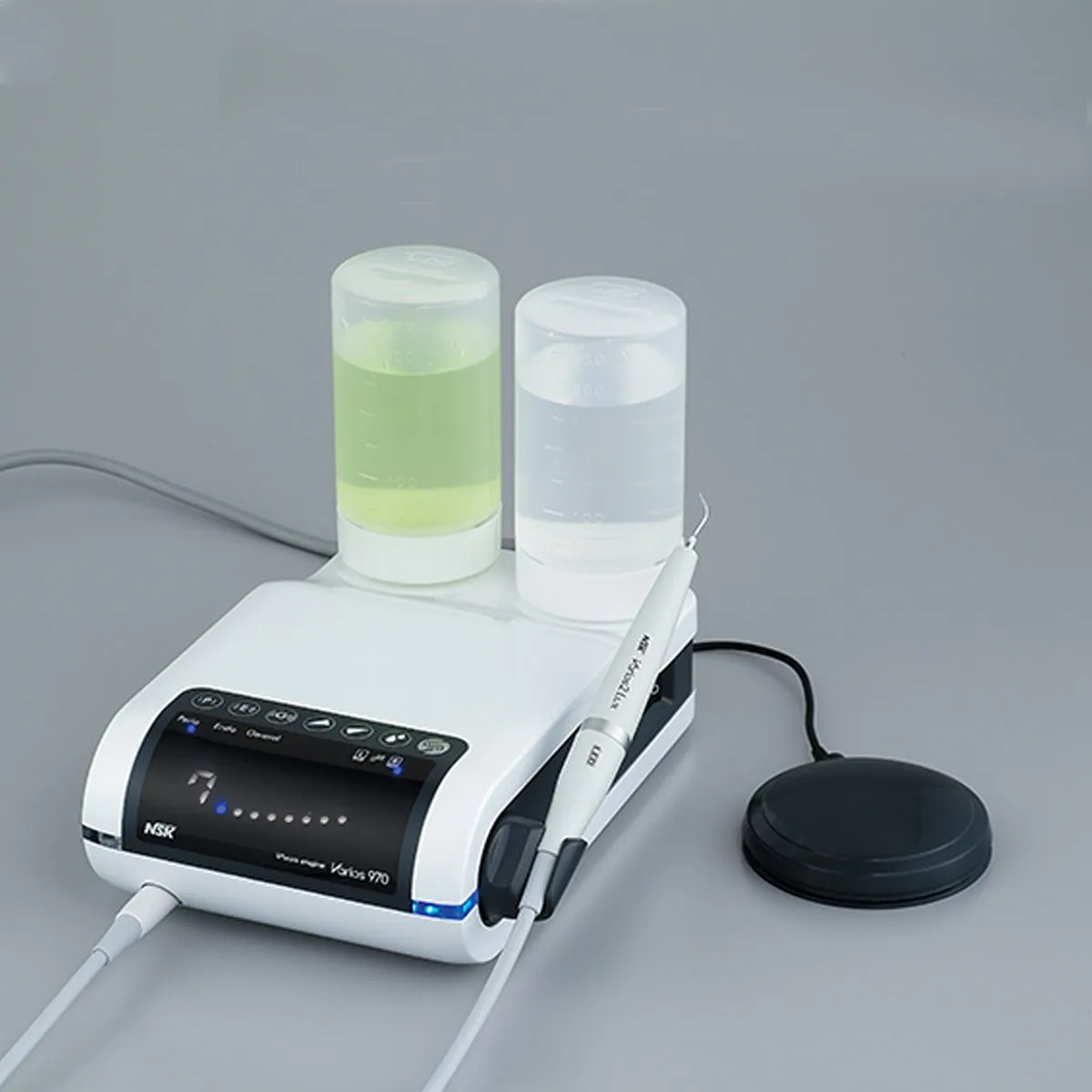

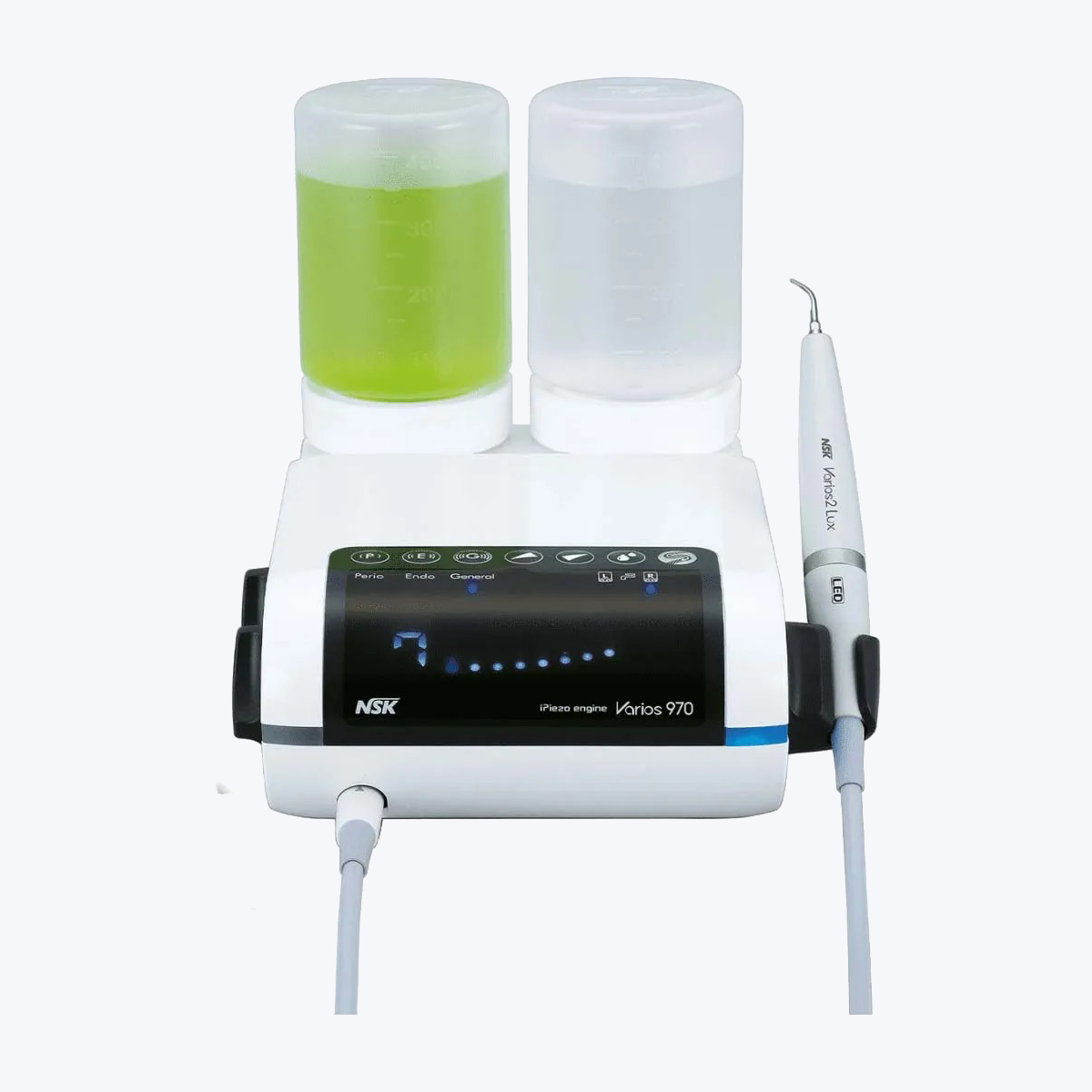

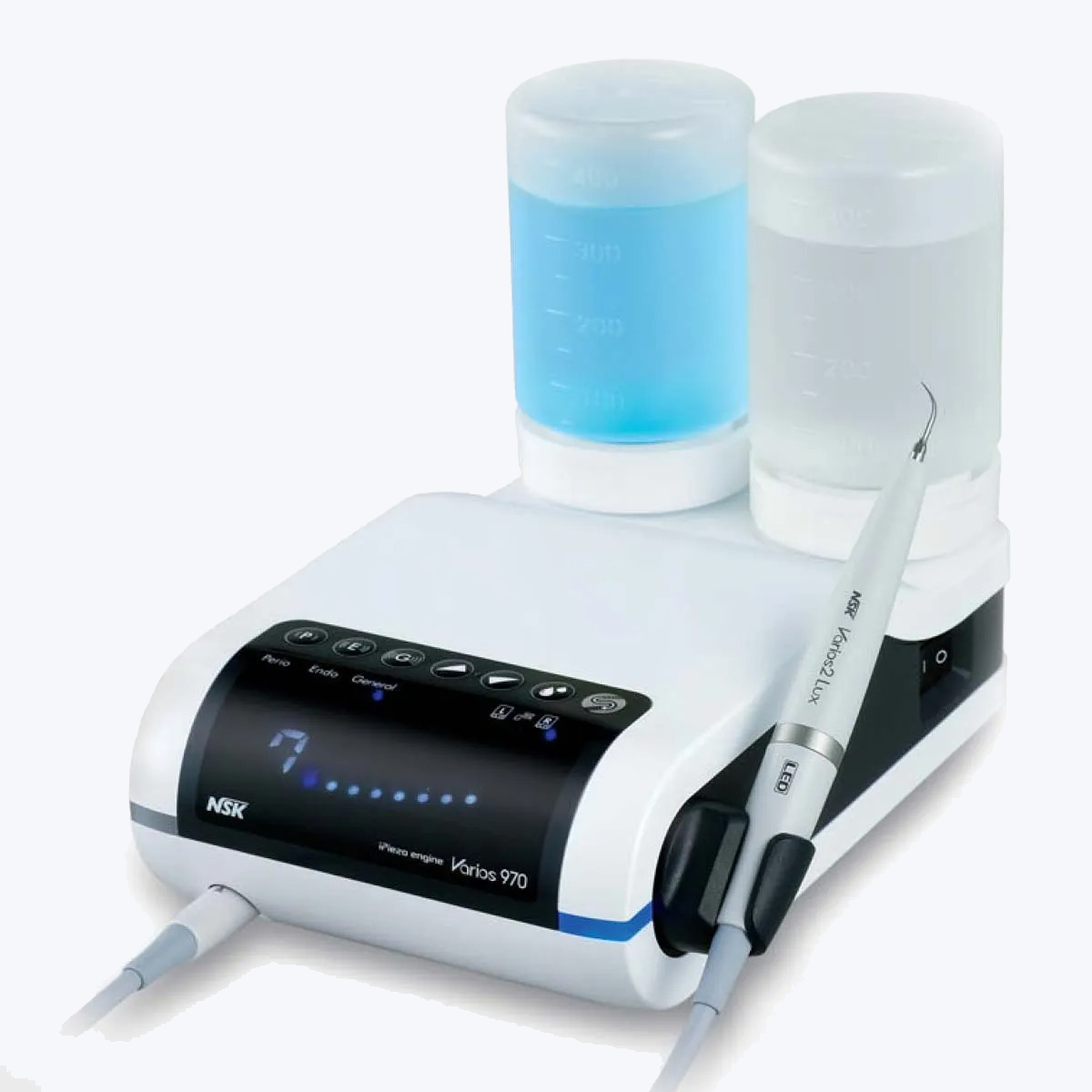

Nsk Varios 970 Scaler With 3 Tip

• Power Supply - AC 120V or 230V 50/60 Hz
• Frequency - 28-32 KHz
• Max. output - 11W(G mode)
• Dimensions - W160 x D270 x H190 (mm) (Including Bottle)
• Unit weight / Module weight - 2.1kg(Except attachment)
• Bottle volume - 400 mL (x 2 bottles)

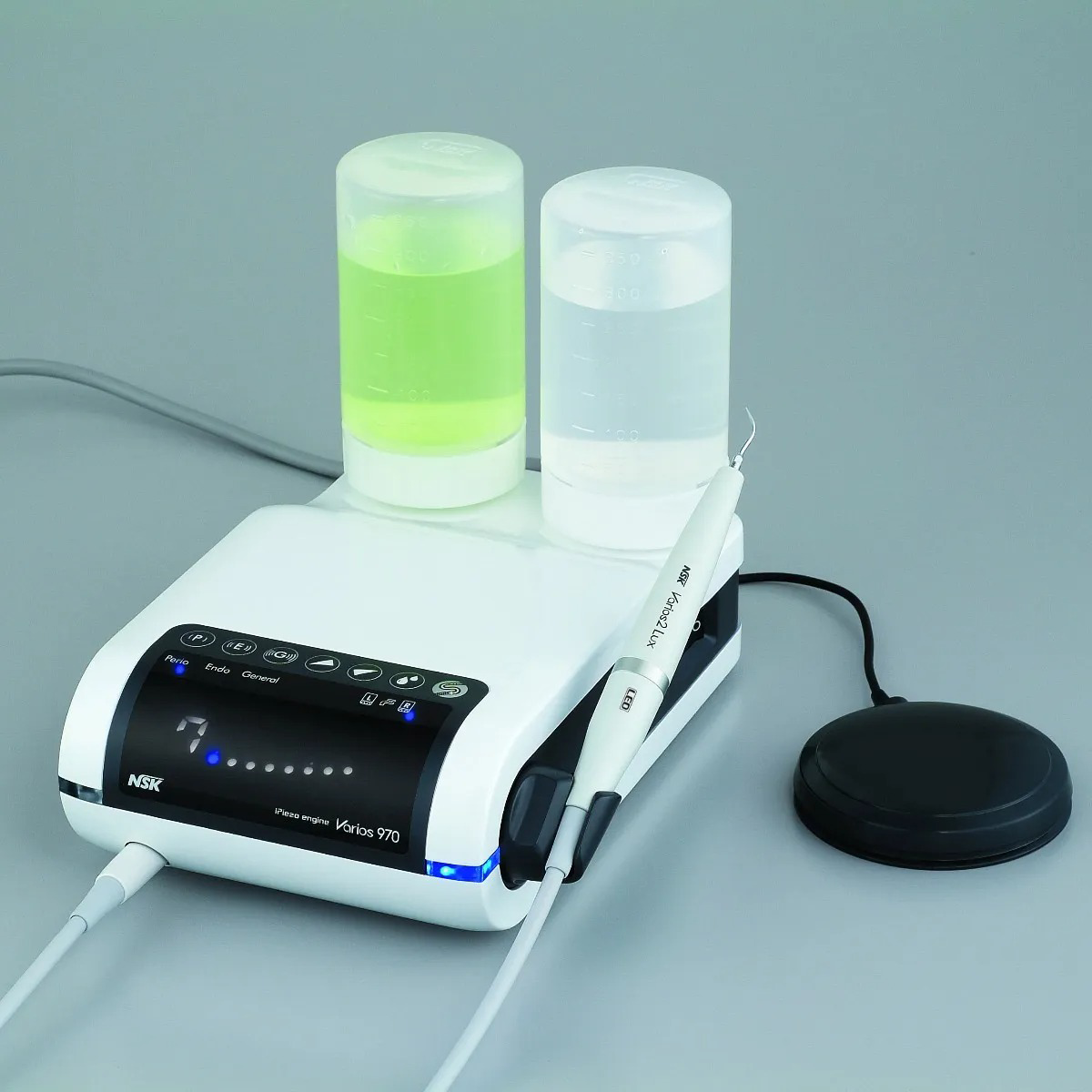

NSK Varios 970 LUX LED Scaler with 3 Tips

• Power Supply - AC 120V or 230V 50/60 Hz
• Frequency - 28-32 KHz
• Max. output - 11W(G mode)
• Dimensions - W160 x D270 x H190 (mm) (Including Bottle)
• Unit weight / Module weight - 2.1kg(Except attachment)
• Bottle volume - 400 mL (x 2 bottles)

Nsk Varios 970 Scaler With 3 Tip

• Control unit
• Handpiece
• Handpiece cord
• 3 Scaling tips (G4, G6, G8)
• Foot control (FC-70)
• 2 x Irrigation bottles
• 3 x Tip wrench with torque limiter
• AC power cord
• Sterilization case

NSK Varios 970 LUX LED Scaler with 3 Tips

• Control unit
• Handpiece
• Handpiece cord
• 3 Scaling tips (G4, G6, G8)
• Foot control (FC-70)
• 2 x Irrigation bottles
• 3 x Tip wrench with torque limiter
• AC power cord
• Sterilization case

Handpiece Setup:

• Choose either the optic or non-optic handpiece based on your preference and requirements.
• Connect the handpiece to the dental unit or portable unit using the appropriate connections.
• Ensure that the handpiece is securely attached and properly aligned.

Power and Volume Settings:

• Adjust the power and volume settings according to your treatment needs. These settings can be customized and saved in the memory function for future use.

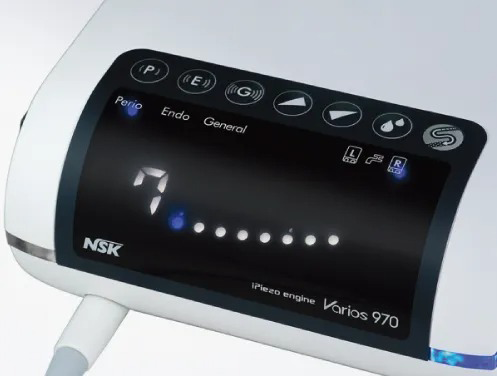

• Use the large LED display and easily recognizable buttons to adjust the settings as desired.

LED Illumination:

• Activate the twin LED lights located at the head of the handpiece. These lights provide clear visibility during procedures.
• The LED lights generate natural daylight quality light, improving vision compared to halogen lights.
• Enjoy the virtually shadow-free illumination, which helps in identifying calculus and plaque during oral hygiene and scaling procedures.

Tip Selection:

• Choose the appropriate tip from the extensive range available with the Varios series.
• Consider the specific clinical application, such as perio, scaling, endodontic, or implant maintenance, and select the corresponding tip.
• Ensure that the selected tip is securely attached to the handpiece.

Autoclaving and Disinfection:

• Prior to use, ensure that the handpiece has been autoclaved up to 135ºC or disinfected following standard protocols.
• Autoclaving and disinfection help maintain high levels of hygiene and prevent the spread of infections.

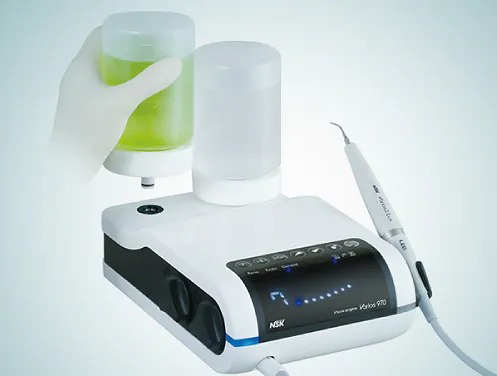

Irrigation Setting:

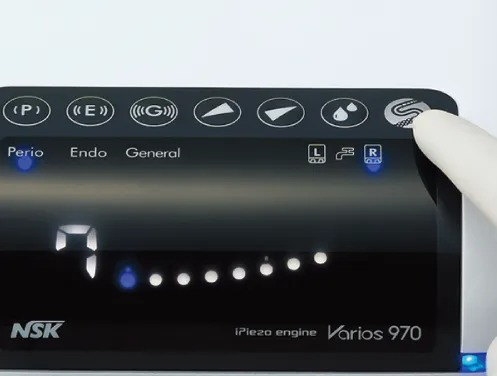

• If needed, set the irrigation mode using the select key on the front panel of the unit.
• The Varios series allows the use of both right and left bottles for irrigation, as well as tap water.
• The LED on the front panel indicates which bottle is in use for irrigation.

Treatment Procedure:

• Position the handpiece for optimal accessibility and visibility during the treatment.
• Utilize the slim design of the handpiece for improved maneuverability and comfortable use.
• Depending on the specific treatment, follow the recommended techniques and guidelines for each clinical application.

Auto Cleaning Mode:

• After using special solutions, activate the Auto Cleaning Mode by pressing the designated button.
• This feature flushes the tubing and handpiece, ensuring cleanliness and preventing cross-contamination.

Maintenance and Sterilization:

• Regularly clean and maintain the Varios equipment according to the provided guidelines.
• The Sterilization Cassette is designed for safe processing and storage of Varios components.

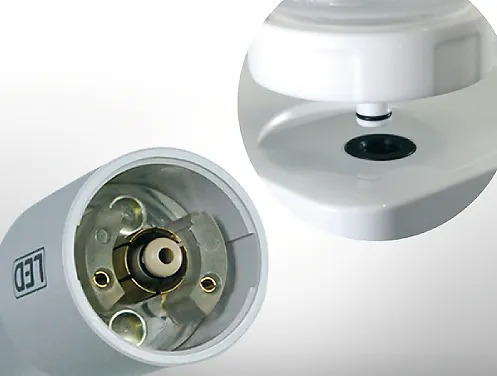

• Take advantage of the improved durability against antiseptic solutions by using the resin-based water pipe of the bottle, pump, and handpiece.

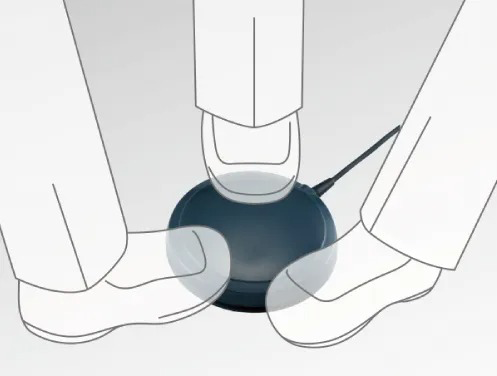

Foot Control:

• Utilize the 360° foot control to operate the Varios equipment easily from any angle.
• Familiarize yourself with the foot control's functions and adjust water volume as necessary using the newly designed interface.
