Technical Specifications:

• Power supply: AC100-240V 50/60 Hz
• Speed: 50-600 rpm
• Dimension: W100 x D100 x H228(mm)

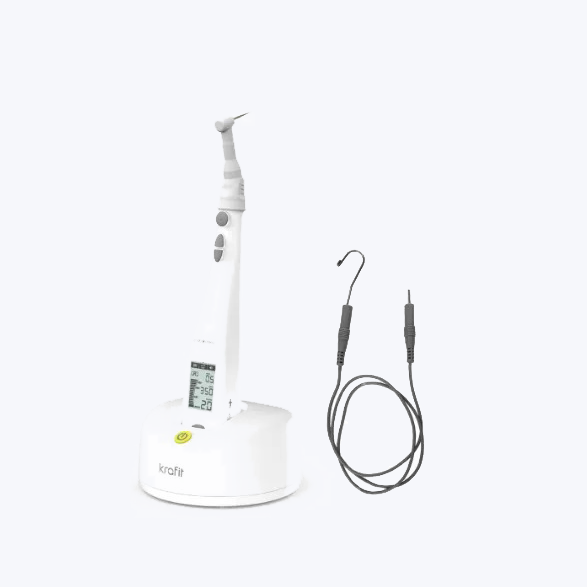

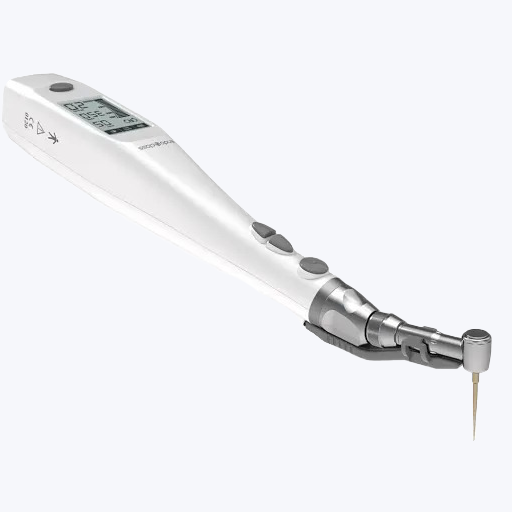

• 1 x Endo motor
• 1 x Contra angle

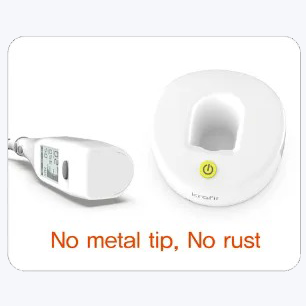

• 1 x Handpiece stand
• 1 x Lip clip
• 1 x Apex cable

Power Supply:

• Ensure that the device is connected to a power source with the specified voltage (AC100-240V, 50/60 Hz). If it's a cordless model, make sure the Li-ion battery is charged.

Inserting Files:

• Choose the appropriate endodontic file for the procedure and insert it into the handpiece.

Settings:

• Set the desired speed on the device. The speed range is typically 50-600 rpm.
• If applicable, configure memory programs according to the specific requirements of the procedure.

LCD Display:

• Check the LCD display for information on the procedure, including the length of the root and any other relevant data.

Apex Locator Mode:

• Activate the apex locator function. The device may have a specific mode or button for this purpose.

Real-time Monitoring:

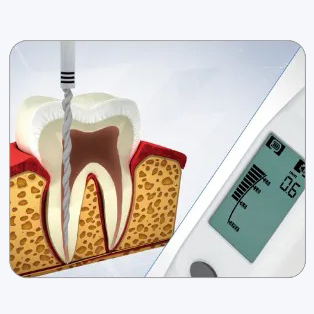

• Monitor the real-time graph on the LCD screen to check the length of the root during the procedure.

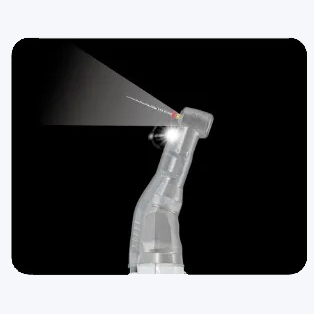

LED Light (if applicable):

• If the device has an LED light for enhanced visibility, you can activate it as needed.

Auto Stop Reverse Feature:

• Take advantage of the auto-stop reverse feature for added safety. The device should automatically stop and reverse if necessary.

Insulation Sleeve:

• Ensure that the insulation sleeve is in place for safe operation.

Procedure:

• Perform the endodontic procedure using the handpiece and monitor the progress on the LCD screen.

Battery Operation:

• If using the cordless feature, ensure the Li-ion battery is sufficiently charged. The device may be operable for approximately 90 minutes on battery power.
